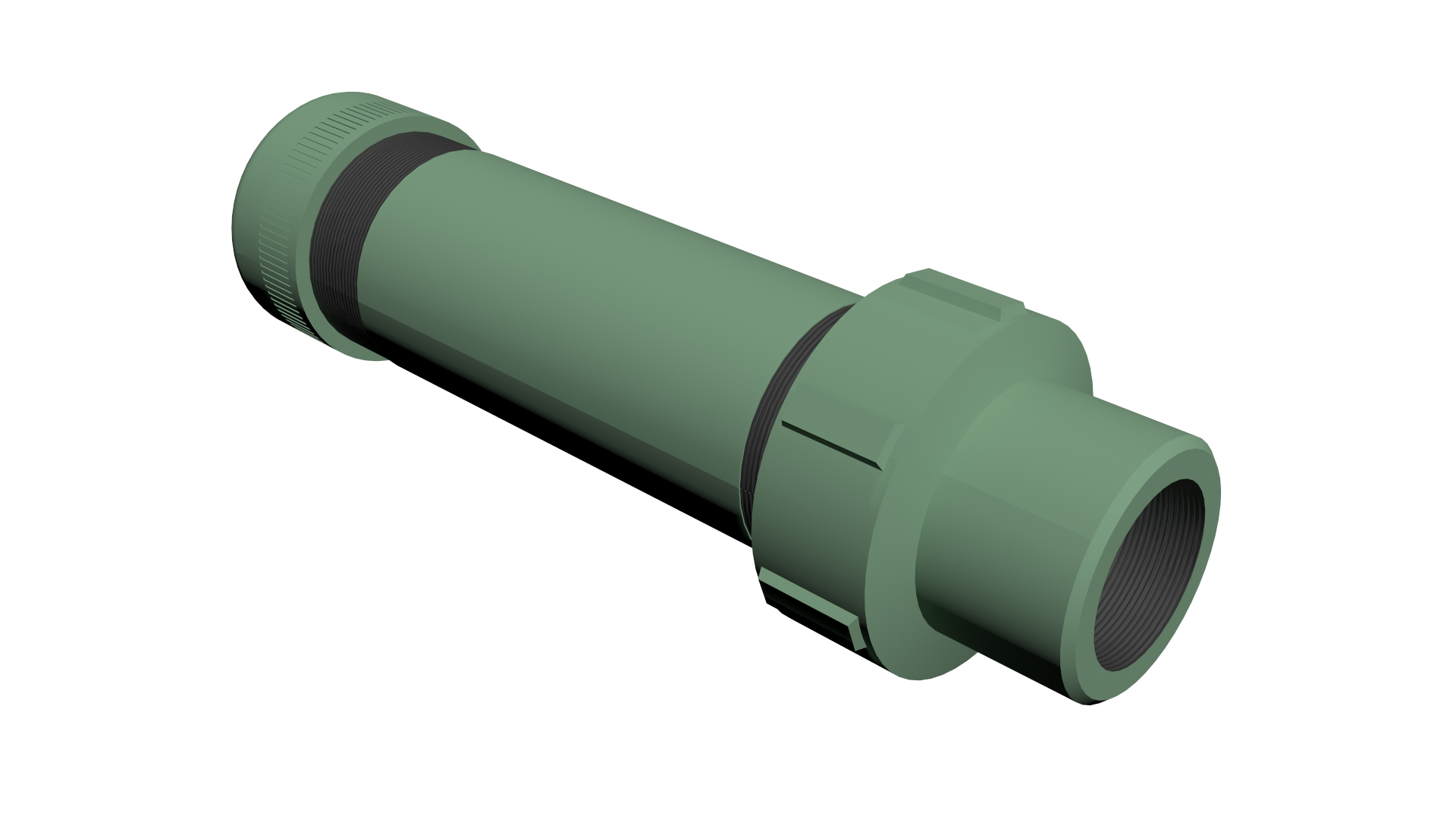

Expansion/Pull Box Fitting EXG

You are here

For rigid conduit. Total movement 4".

With integral grounding.

Optional ground strap.

CatalogueDiameterDimensionsQuantityWeight / 100
EXG-05
1/2
A: 1.75 B: 6.75
1
230.00 lb
EXG-07
3/4
A: 2.12 B: 6.75
1
360.00 lb
EXG-10
1
A: 2.43 B: 7.25
1
480.00 lb
EXG-12
1 1/4
A: 3.19 B: 7.56
1
610.00 lb
EXG-15
1 1/2
A: 3.68 B: 7.87
1
1 080.00 lb
EXG-20
2
A: 4.75 B: 8.25
1
1 710.00 lb
EXG-25
2 1/2
A: 4.87 B: 9.31
1
2 440.00 lb
EXG-30
3
A: 5.37 B: 10
1
3 260.00 lb
EXG-35
3 1/2
A: 6.62 B: 9.81
1
4 570.00 lb
EXG-40
4
A: 6.62 B: 9.81
1
5 500.00 lb
