Malleable iron.
With an Erickson coupling, a conduit run may be completed when neither conduit can be turned. A conduit run may also be broken without taking down the whole run. Conduit joined with Erickson Couplings is rigid and in line and vibration will not loosen the connections.

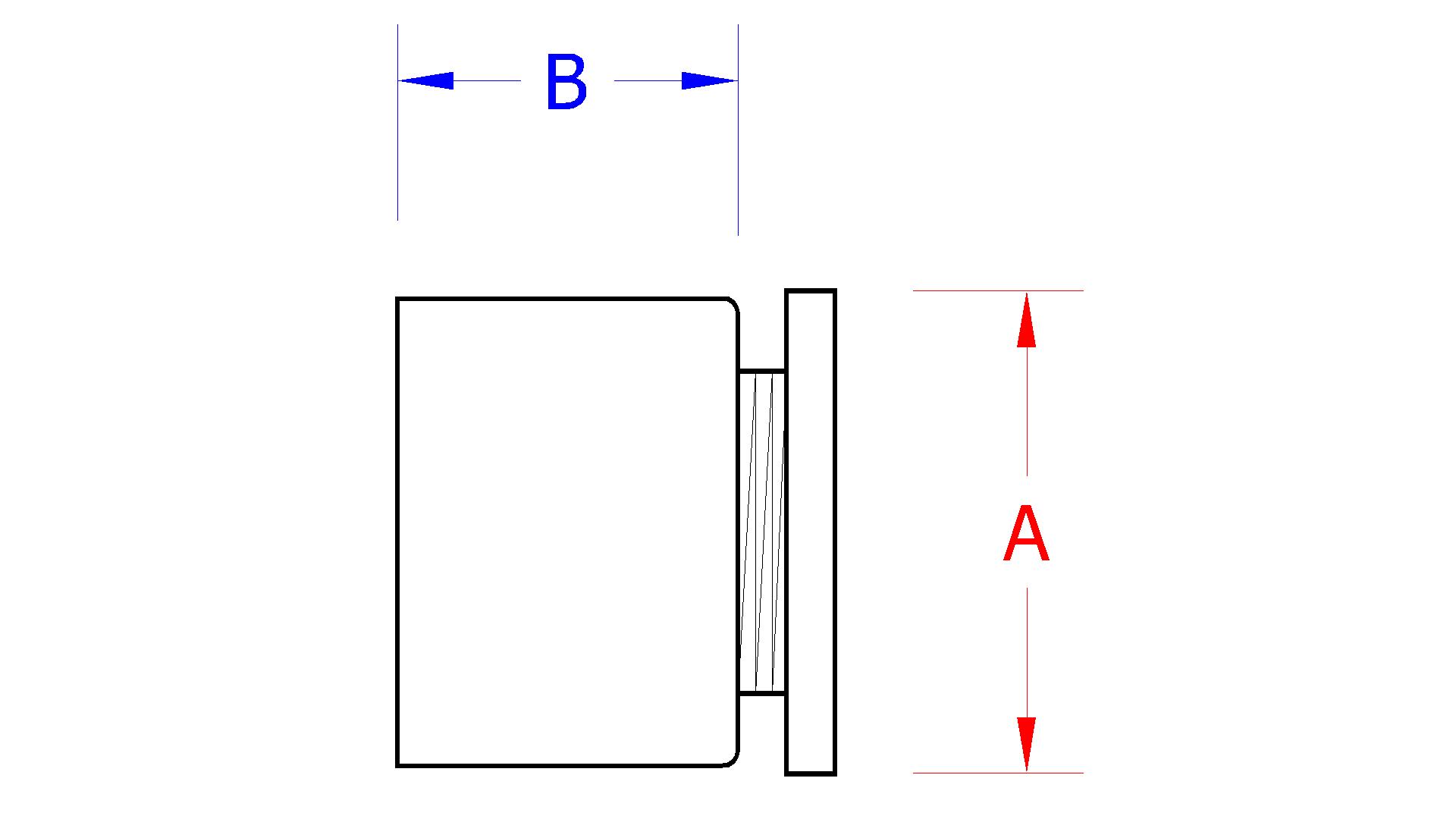

| Catalogue | Diameter | Dimensions | Quantity | Weight / 100 |
|---|---|---|---|---|
RCTG-05 | 1/2 | A: 1 15/32 - B: 1 1/4 | 50 | 24.00 lb |
RCTG-07 | 3/4 | A: 1 9/16 - B: 1 13/32 | 25 | 32.00 lb |
RCTG-10 | 1 | A: 1 29/32 - B: 1 5/8 | 5 | 52.00 lb |
RCTG-12 | 1 1/4 | A: 2 3/8 - B: 1 13/16 | 5 | 92.00 lb |
RCTG-15 | 1 1/2 | A: 2 5/8 - B: 1 31/32 | 5 | 112.00 lb |
RCTG-20 | 2 | A: 3 7/32 - B: 2 7/32 | 1 | 175.00 lb |
RCTG-25 | 2 1/2 | A: 3 31/32 - B: 2 11/18 | 1 | 360.00 lb |
RCTG-30 | 3 | A: 4 7/16 - B: 2 29/32 | 1 | 380.00 lb |
RCTG-35 | 3 1/2 | A: 5 - B: 3 | 1 | 500.00 lb |
RCTG-40 | 4 | A: 5 1/2 - B: 3 3/16 | 1 | 580.00 lb |
